Gun Lock
Patent Number: US 12065104 Grant Date: 2024-08-20 Filing Date: 2022-09-12
Overview
This patent protects a practical, mechanically robust gun lock system designed to secure a firearm to a buckle receiver assembly while offering flexible vehicle and fixed‑surface mounting options. Filed on September 12, 2022 and granted on August 20, 2024, the claims describe a coordinated buckle receiver and tongue assembly with a mounting extension, tamper‑proof fastener, and a swivel mount that attaches directly to a firearm to allow multi‑axis movement. Drafted to cover both simple mechanical locking (e.g., combination lock) and more advanced electronic embodiments, the specification includes optional biometric locking and smartphone app control with onboard battery, controller, and communications module. The inventive scope addresses secure attachment to vehicle seatbelt receivers, wall fixtures, and direct firearm mounts while preserving user ergonomics through an adjustable gun cradle and strap. The prosecution emphasizes durable fastener design and a swivel interface that reduces stress on the firearm mount, reflecting thorough claim drafting and technical depth by inventors based in Plainview, TX and the applicant in Plainview, TX.
Key Features
- Selective buckle tongue-to-receiver locking with tamper‑proof bolt
- Mounting extension adaptable for vehicle seat installation
- Swivel mount with threaded shaft for direct firearm attachment
- Optional biometric reader and smartphone app connectivity
- Adjustable gun cradle and strap for secure firearm retention
By combining proven mechanical hardware with optional biometric and mobile control, this invention bridges traditional security hardware and modern connected‑device workflows, supporting safer firearm storage across automotive and fixed installations.
Invention Details
Abstract: A gun lock system for securing a firearm to a buckle receiver assembly. The gun lock system comprises the buckle receiver assembly and a buckle tongue assembly. The gun lock system comprises buckle receiver and the buckle tongue assembly comprises a tongue. The tongue and the buckle receiver are configured to selectively connect to one another. The buckle receiver assembly comprises a mounting extension, the buckle receiver, a locking system, and a fastener receiver. A fastener comprises a tamper proof bolt. A swivel mount is mounted directly to a portion of the firearm. A swivel portion of the swivel mount can allow the buckle tongue assembly to rotate and move freely.
Summary of the Invention: A gun lock system for securing a firearm to a buckle receiver assembly. Said gun lock system comprises said buckle receiver assembly and a buckle tongue assembly. Said gun lock system comprises buckle receiver and said buckle tongue assembly comprises a tongue. Said tongue and said buckle receiver are configured to selectively connect to one another. Said buckle receiver assembly comprises a mounting extension, said buckle receiver, a locking system, and a fastener receiver. A fastener comprises a tamper proof bolt. A swivel mount is mounted directly to a portion of said firearm. A swivel portion of said swivel mount can allow said buckle tongue assembly to rotate and move freely.
Said gun lock system for securing said firearm to said buckle receiver assembly. Said gun lock system comprises said buckle receiver assembly and said buckle tongue assembly. Said buckle receiver assembly comprises said locking system, and said fastener receiver. Said gun lock system comprises said buckle receiver. Said buckle tongue assembly comprises said tongue. Said locking system is configured to securely hold said buckle tongue assembly when in a locked configuration. Said tongue and said buckle receiver are configured to selectively connect to one another.
Said gun lock system for securing said firearm to said buckle receiver assembly. Said gun lock system comprises said buckle receiver assembly and said buckle tongue assembly. Said buckle receiver assembly comprises said locking system, and said fastener receiver. Said gun lock system comprises said buckle receiver. Said buckle tongue assembly comprises said tongue. Said locking system is configured to securely hold said buckle tongue assembly when in a locked configuration. Said tongue and said buckle receiver are configured to selectively connect to one another. Said gun lock system can further comprise a fixture mount assembly configured to attach said buckle receiver assembly to a fixed surface such as a wall.

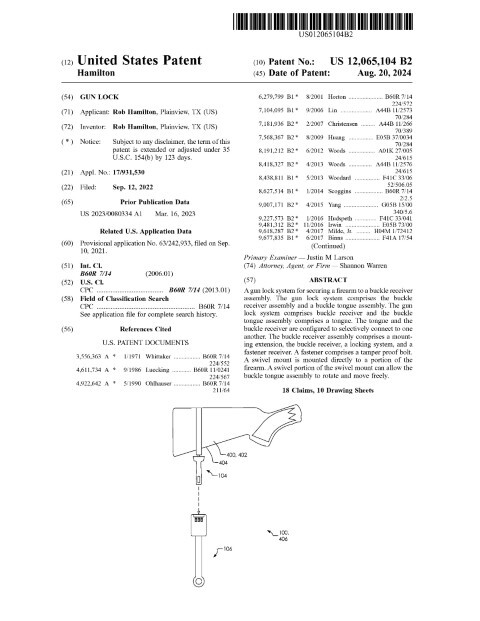

Patent Document
