Skateboard Truck System and Method
Patent Number: US 9457260 Grant Date: 2016-10-04 Filing Date: 2014-11-07
Overview
This patented foot cover assembly improves rider control and modularity for wheeled board assemblies by integrating a removable cover, adjustable L‑bracket, and base plate that secure to a deck and truck. Filed in November 2014 and granted in October 2016, the application—prosecuted for inventors based in Houston, TX and an applicant based in Houston, TX—captures a configurable system that holds a rider’s foot between the cover and the deck while preserving conventional truck and wheel attachments. The disclosure emphasizes a drop‑through compatible base plate that slides through deck cutouts, a keyed interface for adjustable L‑bracket positioning, and a slotted foot cover with fastened socket pairs to vary height and width. Drafting focuses on practical assembly, removable operation, and clear claim scope to protect adjustable and removable configurations across drop‑through and solid‑deck implementations. The resulting patent showcases technical depth in mechanical interfaces and user‑focused adjustability, reflecting rigorous prosecution and claim construction.
Key Features
- Removable base plate that attaches through deck cutouts and accepts standard wheel assemblies
- L‑bracket with multiple socket positions for adjustable height and lateral placement
- Slotted foot cover that fastens to the L‑bracket and secures the rider’s foot under the cover
- Compatibility with both drop‑through and solid decks for broad market applicability
By protecting an adaptable foot‑securing mechanism, this patent supports product differentiation in the skate and longboard market and advances mechanical interface design for rider stability and modular accessories.
Invention Details
Abstract: A foot cover assembly comprising a foot cover and a base plate is disclosed. The foot cover releaseably attaches to the base plate. The base plate releaseably attaches to a board assembly. A portion of the foot cover is arranged over a deck of the board assembly. The foot cover selectively holds a foot of a rider of the board assembly between the foot cover and the deck.
Summary of the Invention: A foot cover assembly and method of use are disclosed.
First, a foot cover assembly is disclosed comprising a foot cover and a base plate. Said foot cover releaseably attaches to said base plate. Said base plate releaseably attaches to a board assembly. A portion of said foot cover is arranged over a deck of said board assembly. Said foot cover selectively holds a foot of a rider of said board assembly between said foot cover and said deck. Said base plate releaseably attaches to said deck. Said board assembly comprises at least a two wheel assemblies comprising a first wheel assembly and a second wheel assembly. At least a one of said two wheel assemblies releaseably attach to a lower portion of said base plate below said deck. Said foot cover releaseably attaches to an upper portion of said base plate above said deck. Said deck comprises at least a first drop-through cutout. Said lower portion of said base plate slides through said first drop-through cutout of said deck and extends below said deck. Said upper portion of said base plate above said deck attaches above said deck and does not pass through said first drop-through cutout.
Next, a foot cover assembly comprising a foot cover and a base plate is disclosed. Said foot cover releaseably attaches to said base plate. Said base plate releaseably attaches to a board assembly. A portion of said foot cover is arranged over a deck of said board assembly. Said foot cover selectively holds a foot of a rider of said board assembly between said foot cover and said deck.
A method of using a foot cover assembly is disclosed. Said method comprising: releaseably attaching a base plate of a foot cover assembly to a foot cover of said foot cover assembly; attaching said foot cover assembly to a deck; attaching a wheel assembly to said base plate; and holding a foot of a rider under said foot cover.

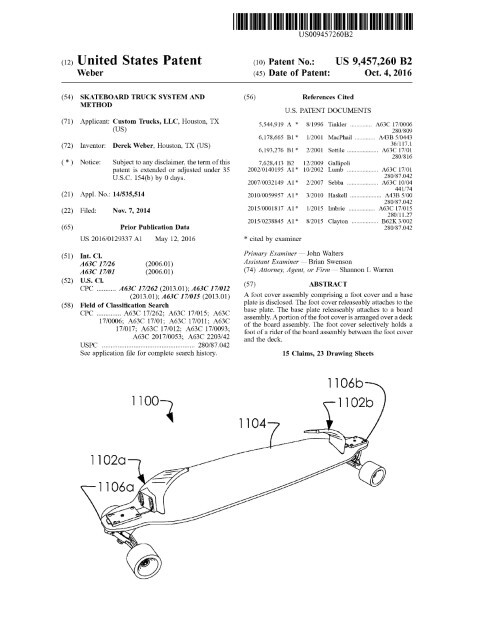

Patent Document
